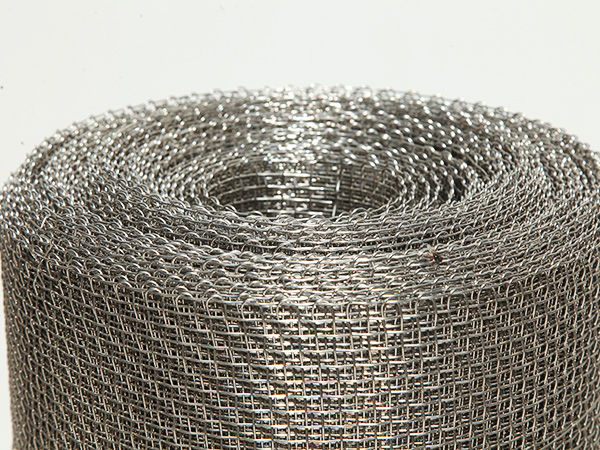

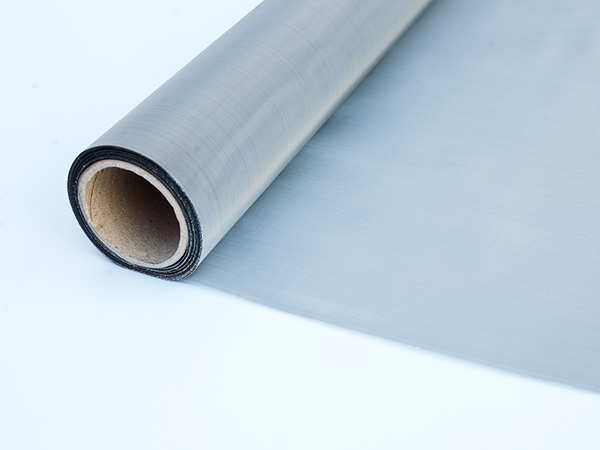

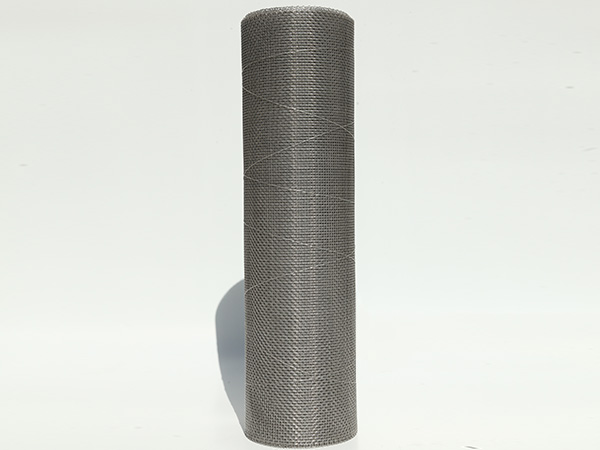

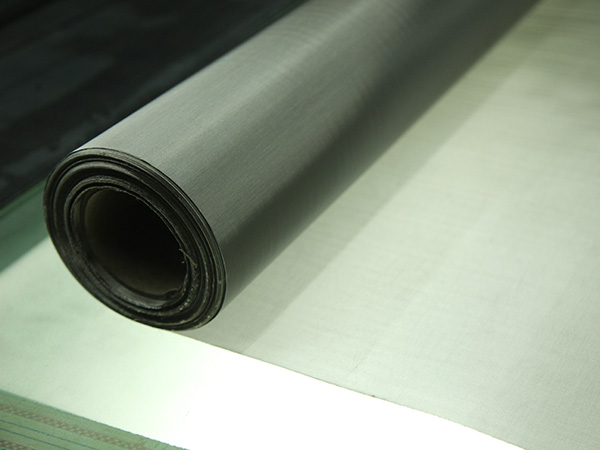

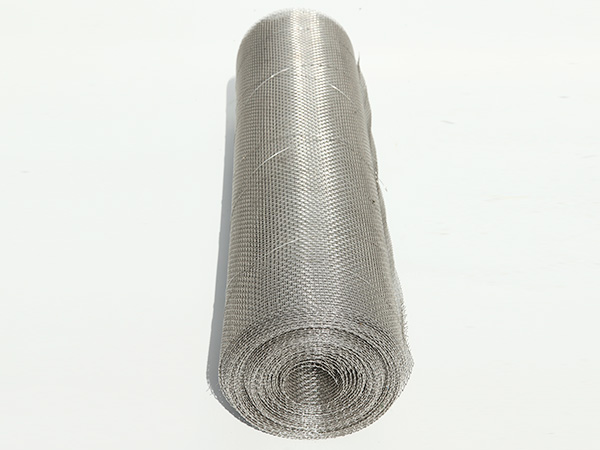

Stainless Steel Square Woven Mesh, in either woven or welded construction, uses include screen enclosures, railing infill panels, fan guards, filtration systems, and many other applications
We could produce versatile, easily adaptable product in various opening and mesh sizes, thicknesses, and primary materials to satisfy a wide range of uses and custom design ideas.
Stainless Steel Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; “Tensile Bolt”Bolting Cloth; Crimped Mesh and Welded Mesh.
Regular Plain /Twill Weave Mesh and”Tensile Bolt “ Bolting Cloth are normally for industrial applications.
All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.
Raw material Grade: 304, 304L, 316, 316L, 430, etc.
General uses in different applications:
· Sizing
· Particle separation and filtering
· Particulate sifting
· Safety and equipment protection.
Detailed Specifications:
Plain /Twill Square Woven Mesh | |||||
Mesh count | Wire Dia | Width of Opening | Open area | ||
Inches | mm | Inches | mm | % | |
1X1 | 0.157 | 4 | 0.84 | 21.4 | 71 |
4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 |
8X8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 |
10X10 | 0.039 | 1 | 0.06 | 1.54 | 36 |
12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 |
14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 |
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 |
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 |
20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 |
24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 |
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 |
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 |
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 |
50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 |
Plain /Twill Square Woven Mesh | |||||
Mesh count | Wire Dia | Width of Opening | Open area | ||
Inches | mm | Inches | mm | % | |
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 |
70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 |
80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 |
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 |
120X120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 |
150X150 | 0.026 | 0.066 | 0.0041 | 0.1041 | 37.4 |
180X180 | 0.023 | 0.0584 | 0.0033 | 0.0838 | 34.7 |
200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 |
250X250 | 0.0016 | 0.406 | 0.0024 | 0.061 | 36 |
300X300 | 0.0015 | 0.0381 | 0.0018 | 0.0457 | 29.7 |
325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 |
400X400 | 0.001 | 0.0254 | 0.0015 | 0.037 | 36 |
500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 |
635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 |
"Tensil Bolt" Bolting Cloth | |||||
Mesh count | Width of Opening | Diameter of Wire | Open area | ||
Inches | mm | Inches | mm | % | |
30X30 | 0.0268 | 0.681 | 0.0065 | 0.165 | 64.8 |
36X36 | 0.0213 | 0.541 | 0.0065 | 0.165 | 58.7 |
40X40 | 0.0185 | 0.47 | 0.0065 | 0.165 | 54.8 |
50X50 | 0.0145 | 0.368 | 0.0055 | 0.127 | 52.6 |
60X60 | 0.0122 | 0.31 | 0.0045 | 0.114 | 53.3 |
70X70 | 0.0106 | 0.269 | 0.0037 | 0.094 | 54.9 |
80X80 | 0.0088 | 0.224 | 0.0037 | 0.094 | 49.6 |
105X105 | 0.0065 | 0.165 | 0.003 | 0.076 | 46.9 |
120X120 | 0.0058 | 0.147 | 0.0025 | 0.064 | 47.3 |
165X165 | 0.0042 | 0.107 | 0.0019 | 0.048 | 47.1 |
200X200 | 0.0034 | 0.0864 | 0.0016 | 0.0406 | 46.2 |
230X230 | 0.0029 | 0.0737 | 0.0014 | 0.0356 | 46 |
400X400 | 0.0016 | 0.0415 | 0.0009 | 0.022 | 35.1 |
Packaging Details:
stainless steel wire rod packing:*Less than 0.9mm diameter wire packed by plastic spool--small or big spool, 2-3kg and15kg.
More than 0.9mm diameter wire packed in coil, 25kg per coil--plastic film coated inside and woven bags outside.
FAQ:
Q: Are you trading company or manufacturer?
A:Our Company is a stainless steel wire & mesh manufacturer.
Q: How long is you delivery time?
A: Generally it is 3-5 days ,if the goods or sample are in stock.
If customized,it is 25-45 days longer time,it is depend on the quantity and product’s specifications
Q: Do you provide samples? Is it free or extra?
A:Yes,we could offer the sample. Free sample size is smaller than 20x20cm.
But the express fee is paid by client.
Q:What is your terms of payment?
A: Paypal(less than $1000 );
T/T 30%T/T in advance,70% the balance against the copy of the B/L
